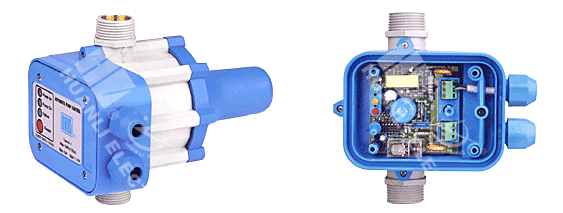

Automatic Pressure Control
Made in China
KE Kit SKD-3 Vertical Yellow/Blue
Details
- Rated voltage : 110V/230V
- Max current : 10 (6) A
- Frequency : 60HZ/50HZ
- Joint Screw : G1"
- Starting Pressure : 1.5bar/2.2bar
- Max Power : 1.1 KW
- Protection Grade : IP65
- Max Working : 10 bar
- Max Operating Temp : 60 C
- Application : Self-Priming Pump, Jet Pump, Garden Pump, Clarified Water Pump
Details
- Rated voltage : 110V/230V
- Max current : 10 (6) A
- Frequency : 60HZ/50HZ
- Joint Screw : G1"
- Starting Pressure : 1.5bar/2.2bar
- Max Power : 1.1 KW - 2.2 KW
- Protection Grade : IP65
- Max Working : 10 bar
- Max Operating Temp : 60 C
- Application : Self-Priming Pump, Jet Pump, Garden Pump, Clarified Water Pump
KE Kit SKD-1 Horizontal Blue
Pressure Switch
Descriptions:
- Rated voltage : 110V/230V
- Max current : 12A/6A
- Joint Screw : Z1/4"
- Pressure Range : 0.8-5.0 bar
- Presuure settling : 1.4-2.8 bar, 2.1-3.5 bar, 1.4-4.2 bar
- Protection Grade : IP20
- Working Temp. : 0-55 C
- Application : Self-Priming Pump, Jet Pump, Garden Pump, Clarified Water Pump
Pressure Gauge
Details:
​
YD-M-50mm 2" (50mm) Radial direction
YD-M-63mm 2-1/2" (63mm) Radial direction
​
​​
Details:
​
Model : YD-24L
Type : 24L
Height : 330mm
Diameter : 330mm
Packing : 335x335x330mm
Working Pressure : 5bar/8bar
Max Temp. : N.R 60 C/EPDM 100 C
Connection : G1" G3/4
​
​
​​
Pressure Tank Vertical 24 Ltr
